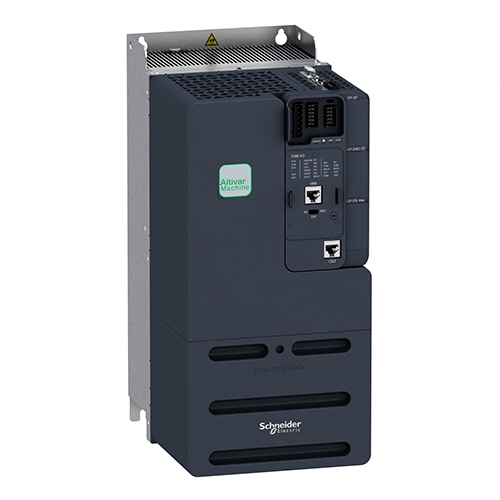

ATV340 11KW 15HP 400V WITH ETHERNET VARI

Send Inquiry

Request To Call Back

ATV340 11KW 15HP 400V WITH ETHERNET VARI

Get a Price/Quote

MOQ : 1 Piece

ATV340 11KW 15HP 400V WITH ETHERNET VARI Specification

Shape
Rectangular

Efficiency
>=97%

Insulation Material
Polycarbonate

IP Rating
IP20

Feature
Ethernet connectivity, Dynamic braking, High torque at low speed

Overheating Protection
Yes (Thermal Protection)

Humidity %
5 to 95% non-condensing

Surface Finish
Matte

Power Factor
>=0.98

Mounting Type
Wall/DIN Rail Mount

Connector Type
RJ45, Screw Terminal

Operating Temperature
-10C to +50C

Product Type
Variable Frequency Drive (VFD)

Application
Industrial Automation, Motor Speed Control

Protection Level
Overvoltage, Short-circuit, Overcurrent, Ground Fault

Frequency (MHz)
50/60 Hz

Rated Voltage
400V AC

Energy Consumption
Optimized for 11kW output

Output Type
Three Phase

Color
Black/Grey

Dimension (L*W*H)
215 mm x 140 mm x 232 mm

Weight
8.5 kg

Phase
Three Phase

Size
Standard (11 kW frame)

Input Voltage
380-480V AC

Connection Type
Ethernet, Screw Terminal

Material
Polycarbonate/Metal

Braking Unit
Integrated

Catalog Reference
ATV340U11N4E

Standards
IEC/EN 61800-5-1, UL, CSA, CE

Maximum Output Frequency
599 Hz

Control Method
Sensorless Vector Control, V/F, Flux Vector

EMC Filtering
Integrated

Cooling Method
Fan Cooled

Motor Compatibility
Asynchronous and Synchronous Motors

Altitude
Up to 1000m without derating, up to 3000m with derating

Communication Interface
Ethernet/IP, Modbus TCP/IP

Display Type
LED/LCD status panel

Programming
SoMove software compatible

About ATV340 11KW 15HP 400V WITH ETHERNET VARI

Ending Soon! Seize the superb ATV340 11KW 15HP 400V WITH ETHERNET VARI-an uncommon, premier choice in industrial automation. This scarce find stands apart with sensorless vector control, maximum output frequency of 599 Hz, and Ethernet/IP, Modbus TCP/IP support. Enjoy robust protection (overvoltage, short-circuit, ground fault), an efficient fan-cooled system, and effortless programming via SoMove. Integrated dynamic braking, high torque at low speed, and wide motor compatibility ensure versatile performance. Certified to IEC/EN, UL, CSA, and CE standards, this matte-finished marvel fits demanding industrial needs. Act fast-supplies are limited!

Innovative Applications & Unmatched Features

The ATV340 11KW 15HP 400V WITH ETHERNET VARI is highly adaptable for motor speed control, conveyors, machine tools, and automated assembly lines. Made from durable polycarbonate and metal, it offers a matte finish and robust design for harsh environments. Its integrated Ethernet connectivity and exceptional protection levels give it a competitive edge, ensuring higher efficiency and optimal performance in every industrial setting. Choose this premier drive for reliability and flexibility in diverse automation applications.

Reliable Certifications, Sample Options & Packaging Details

With globally recognized certifications (IEC/EN 61800-5-1, UL, CSA, CE), the ATV340 guarantees compliance and peace of mind. Samples are available on request-compare the reduced sale price to standard list prices and minimize your expenditure. Each unit comes securely packaged to ensure safety during transit, maintaining pristine condition throughout delivery. For traders, suppliers, and distributors in India, this is an optimal, well-priced solution for industrial automation and motor control needs.

FAQ's of ATV340 11KW 15HP 400V WITH ETHERNET VARI:

Q: How does the ATV340 11KW 15HP enhance industrial motor control?

A: The ATV340 offers advanced control methods, such as Sensorless Vector and Flux Vector, ensuring precise and efficient speed regulation for both asynchronous and synchronous motors, making operations smoother and more flexible.

Q: What certifications does the ATV340 11KW 15HP hold for reliable usage?

A: This model boasts IEC/EN 61800-5-1, UL, CSA, and CE certifications, confirming its safety, quality, and compatibility for global industrial standards.

Q: Where is the ATV340 11KW 15HP commonly used?

A: It is widely applied in industrial automation for motor speed control, assembly lines, material handling, and machinery that require premier torque and high efficiency.

Q: What are the main benefits of its integrated Ethernet connectivity?

A: Ethernet connectivity (Ethernet/IP, Modbus TCP/IP) allows seamless network integration, remote monitoring, and efficient data communication, streamlining system management and boosting productivity.

Q: How can I request a sample or obtain the ATV340 at sale price?

A: You can request samples from distributors or suppliers, and benefit from reduced sale prices compared to the standard list price-contact your local representative in India for availability and offers.
